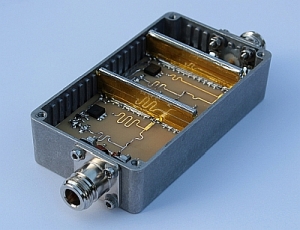

OGN-01-VLNA - Very Low Noise Amplifier designed for OGN Base Stations


  • Double stage, high performance, tower mounted GaAs pseudomorphic HEMT amplifier
  • Very low Noise Figure: 0.35dB
  • High gain : +28dB
  • High linearity: +29dBm OIP3
  • Narrowband:
    • -3dB gain bandwidth : 865...874MHz (9MHz)
    • Gain cutoff bandwidth : 861...876MHz (15MHz)
  • Unconditionally stable
  • Low loss, high quality Amphenol N connectors (LNA unit)
  • -35°C to +85°C operating temperature range
  • DC power via Bias-T unit: 9-15V, 100mA (separate power supply required)
  • Dedicated Bias-T unit with strong RF filtering in the DC path
  • Reverse polarity protection
  • ESD protection:
    • RF input DC grounded
    • RF output protected by fast TVS diode
