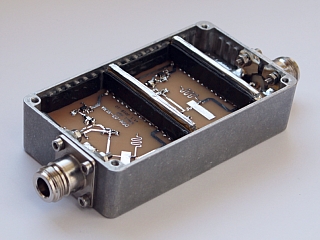

OGN-02-VLNA - Very Low Noise Amplifier designed for OGN Base Stations


  • Double stage, high performance, tower mounted QUBiC4X SiGe:C HBT amplifier
  • Low Noise Figure: 1.2dB
  • High gain : +30dB
  • High linearity: +33dBm OIP3
  • Low impedance active bias
  • Narrowband:
    • -3dB gain bandwidth : 865...874MHz (9MHz)
    • Gain cutoff bandwidth : 861...876MHz (15MHz)
  • Unconditionally stable
  • Low loss, high quality Amphenol N connectors
  • -35°C to +85°C operating temperature range
  • Power supply: 4-6V, 150mA
  • Reverse polarity protection
  • ESD protection:
    • RF input DC grounded
    • RF output protected by fast TVS diode
